Aquasafe Micron Cartridge Filters

Micron Cartridge Filters

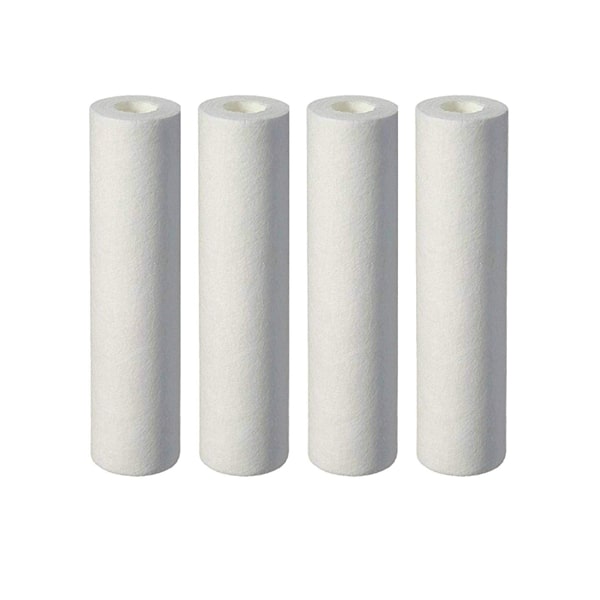

PPW series-wound cartridges can withstand severe handling and operation situations. This is due to the High-grade filter media and high strength core it has. These cartridges are mainly used for removing coarse particles from something called process fluid. These Cartridges can remove contaminants of various sizes. Since they have a graded pore structure, they have a high dirt-holding capacity at very low pressure.

Various features of Micron Cartridge Filters

  • The micron rating is from 0.5 to 100 microns
  • Low-pressure drop at a high flow rate
  • They are non-foaming and at the same time have no fabric release
  • The materials, core, and media are strictly made per FDA-compliant materials.
  • Polypropylene or bleached cotton media are available for different applications
  • High dirt holding capacity available because of stainless steel core


  • Filter Media
  • Polypropylene
  • Bleached Cotton
  • Fiber Glass

Core Material:

  • Polypropylene
  • PP/Stainless Steel
  • Stainless Steel

Micron Rating:

  • 0.5,1, 5, 10, 20, 50, and 100 Micron (Nominal) Dimensions
  • 1-1/16″ (27 mm) x 2 – 1/2 (63.5 mm) OD
  • Length : 10″, 20″, 30″, 40″


  • Polypropylene Media: 90 C (194 F) with a polypropylene core
  • Bleached Cotton Media: 120 C (250 F) with Stainless steel core

Typical Applications:

  • Food & Beverage
  • RO Pre- filtration
  • Potable water
  • Photographic solutions
  • Plating solutions
  • Organic solvents
